3WAY BALL VALVE

Atauff Hydraulic Store

Atauff Hydraulic Store high pressure 3-way block type ball valve [AHS3WBV] are units which serve to shut off the flow of an operating medium in both direction. By turning the control spindle the flow is diverted, according to the ball bore, and the opposite side is shut off leakage free. These 3 way ball valves are not designed to be used as flow control valve, therefore they should always be either fully open or fully closed to avoid damaging the sealing cups.

Standard Model Function:


Model Code Size Pressure Flow
AHS3WBV-06 1/4" BSP 500 BAR 30 LPM
AHS3WBV-10 3/8" BSP 500 BAR 50 LPM
AHS3WBV-12 1/2" BSP 500 BAR 70 LPM
AHS3WBV-20 3/4" BSP 350 BAR 120 LPM
AHS3WBV-25 1" BSP 350 BAR 180 LPM
AHS3WBV-32 1¼” BSP 315 BAR 220 LPM
AHS3WBV-40 1½” BSP 315 BAR 300 LPM
AHS3WBV-50 2" BSP 315 BAR 500 LPM
flow control valves

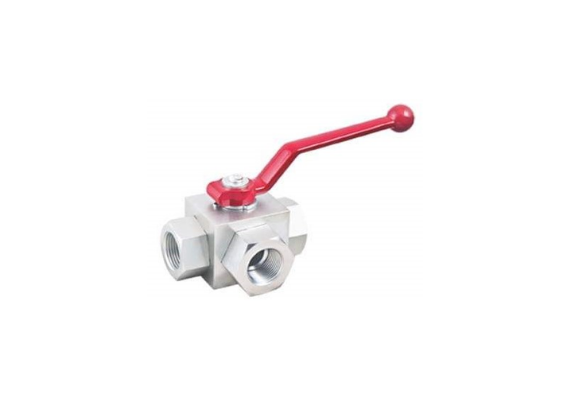

3Way Ball Valve-MS

flow control valves

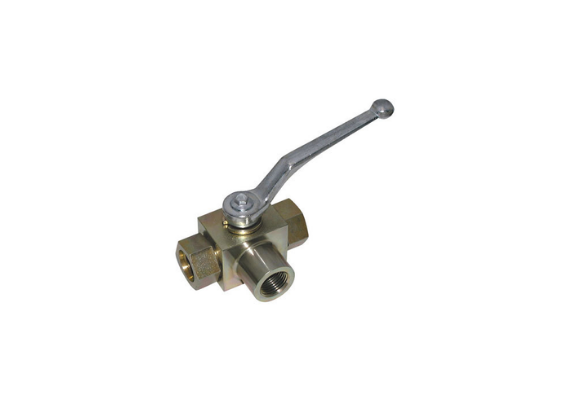

3Way Ball Valve-SS

Catalogues

Specifications Of 3way Ball Valve

Atauff Hydraulic Store is one of the Three Way Ball Valve manufacturers, suppliers & exporters in India. We are supplier in India, spain, UK, USA, Canada, Egypt, Iran, Japan, Malaysia, Nepal, Oman.
A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.
3-way on-off Switching Models.
1. Size Range : 1/4" to 3”
2. Type : 2 way, 3 way, 4 way
3. End Connections : Flanged/NPT/BSP/SW/BW
4. Body : Block
5. Material : SS 304/ SS 316/ SS 316L/ CS
6. Seat : PTFE
7. Working Pressure : 210 bar TO 420 bar depending on valve size and valve materials selected
8. Temperature Range : +10°C to +100°C
