WELD PIPE FITTINGS

ATAUFF
Catalogues


Description Class Designation
3000 6000 9000
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings,
Half-Couplings,
End or Pipe Caps
1/2 - 4 1/2 - 2 1/2 - 2
1/2 - 4 1/2 - 2 1/2 - 2
1/2 - 4 1/2 - 2 1/2 - 2
Pipe Size
by Wall Thickness
SCH 80 / XS SCH 160 XXS

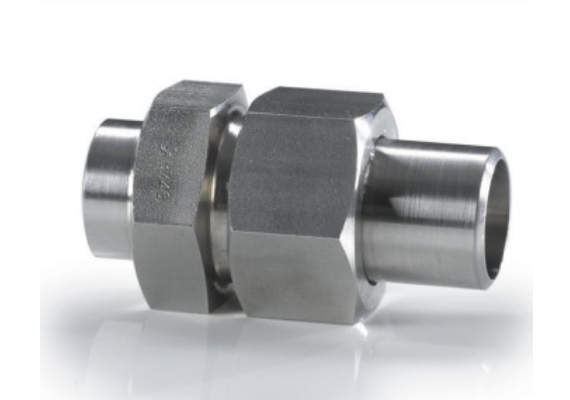

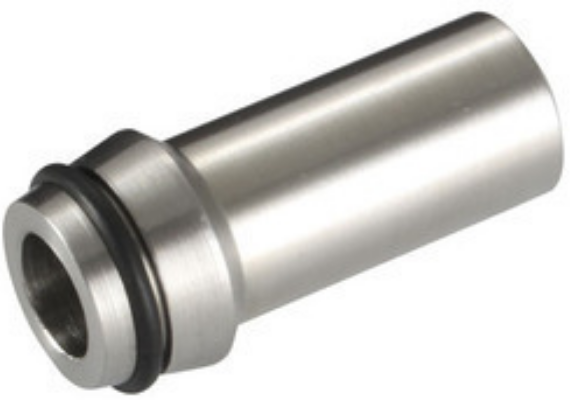

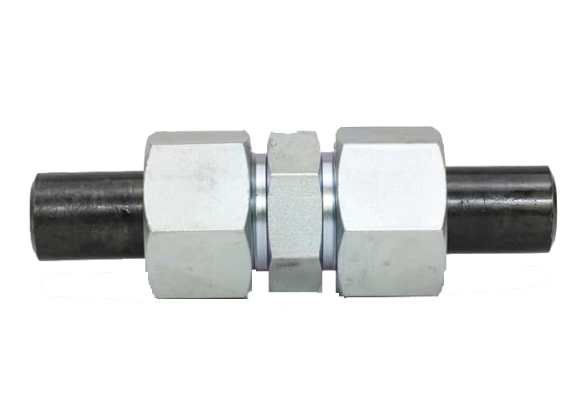

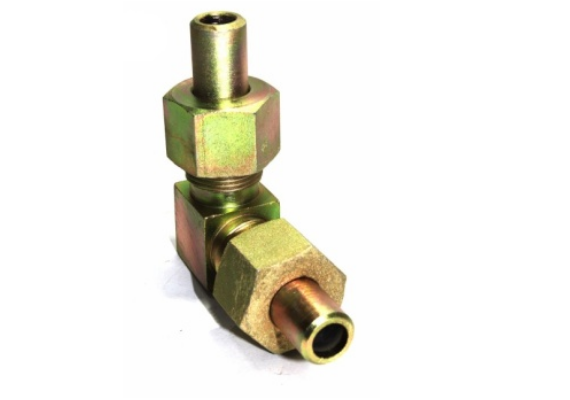

Specifications Of Weld Pipe Fittings

Atauff Hydraulic is one of the Hydraulic Weld Pipe Fittings manufacturers, suppliers & exporters in India. We are supplier in India, spain, UK, USA, Canada, Egypt, Iran, Japan, Malaysia, Nepal, Oman.
These are used for lines conveying flammable, toxic or expensive material where no leakage can be permitted, and for steam 300 to 600 PSI. These are used only in conjunction with ASME Pipe and are available in the same size range.
Used in areas where pipe-work is permanent and are designed to provide good flow characteristics.
Produced to several ASTM standards and are manufactured in accordance with ASME B16.11. The B16.11 standard covers pressure-temperature ratings, dimensions, tolerances, marking, and material requirements for forged carbon and alloy steel. Acceptable material forms are forgings, bars, seamless pipe, and seamless tubes which conform to the fittings chemical requirements, melting practices, and mechanical property requirements of ASTM A105, A182, or A350.
These are available in three pressure ratings: Class 3000, 6000 and 9000.
