Atauff Hydraulic Store high pressure flow control valves [AHSFCV] with reverse flow check allow the same fine flow adjustment. The flow control & shut off function however, works unidirectionally only. Unrestricted flow in the reverse

Pressure 350 Bar

Model Code Size Flow
AHSFCV-08 1/4” BSP 12 LPM
AHSFCV-10 3/8” BSP 25 LPM
AHSFCV-12 1/2” BSP 40 LPM
AHSFCV-16 3/4” BSP 75 LPM
flow control valves

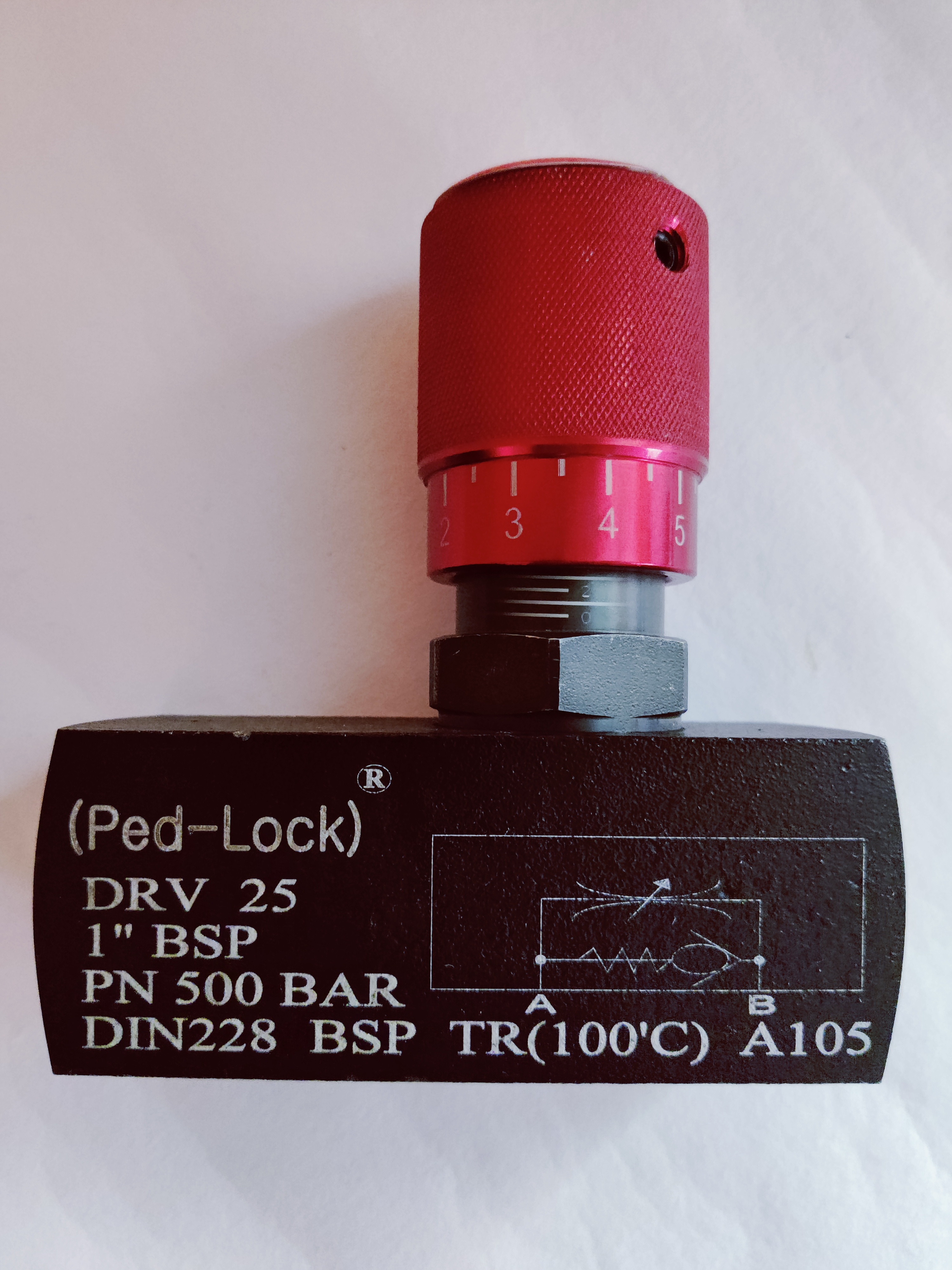

Flow Control Valve-DRV-1"BSP

flow control valves

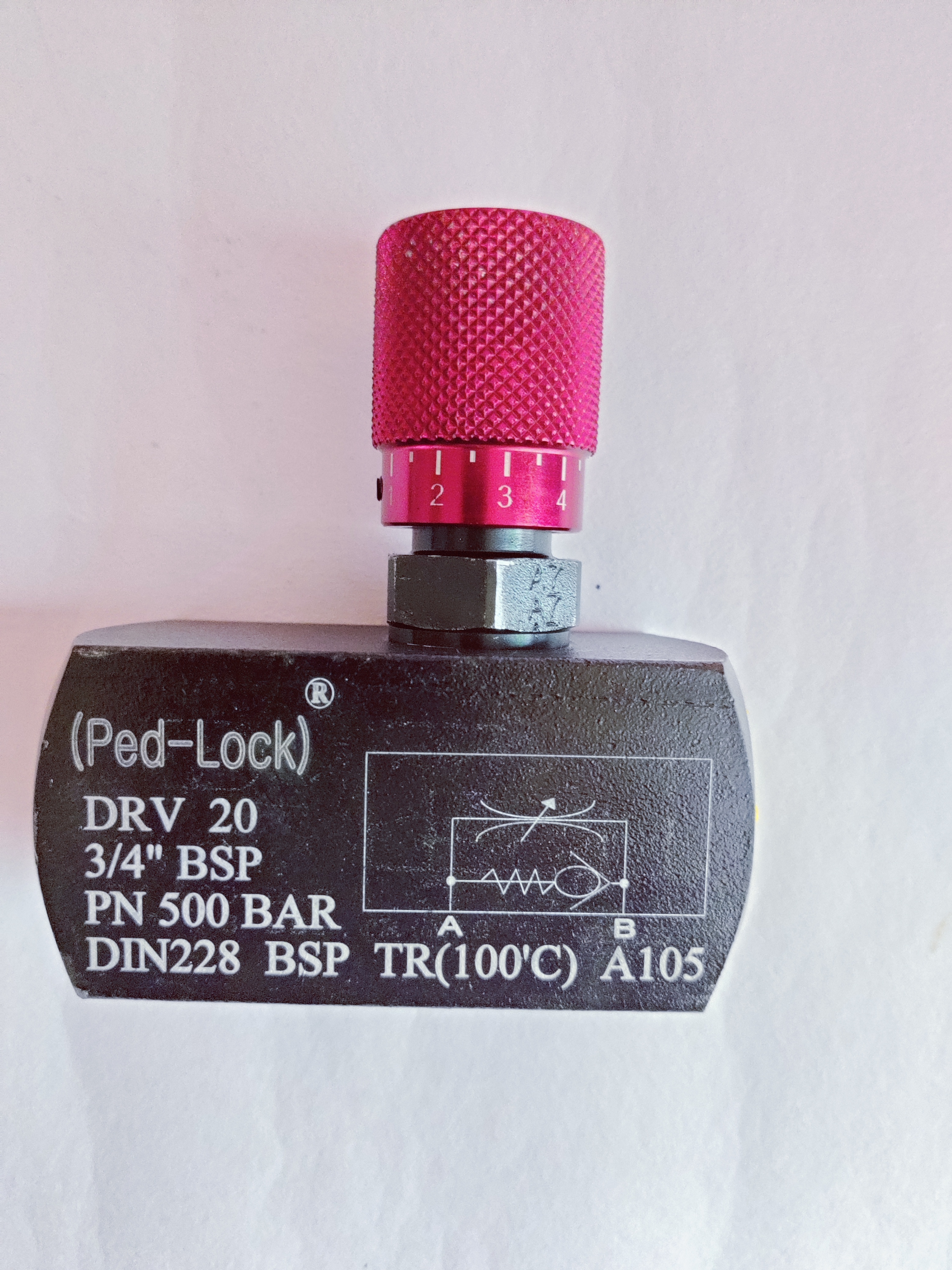

Flow Control Valve-DRV-3/4"BSP

flow control valves

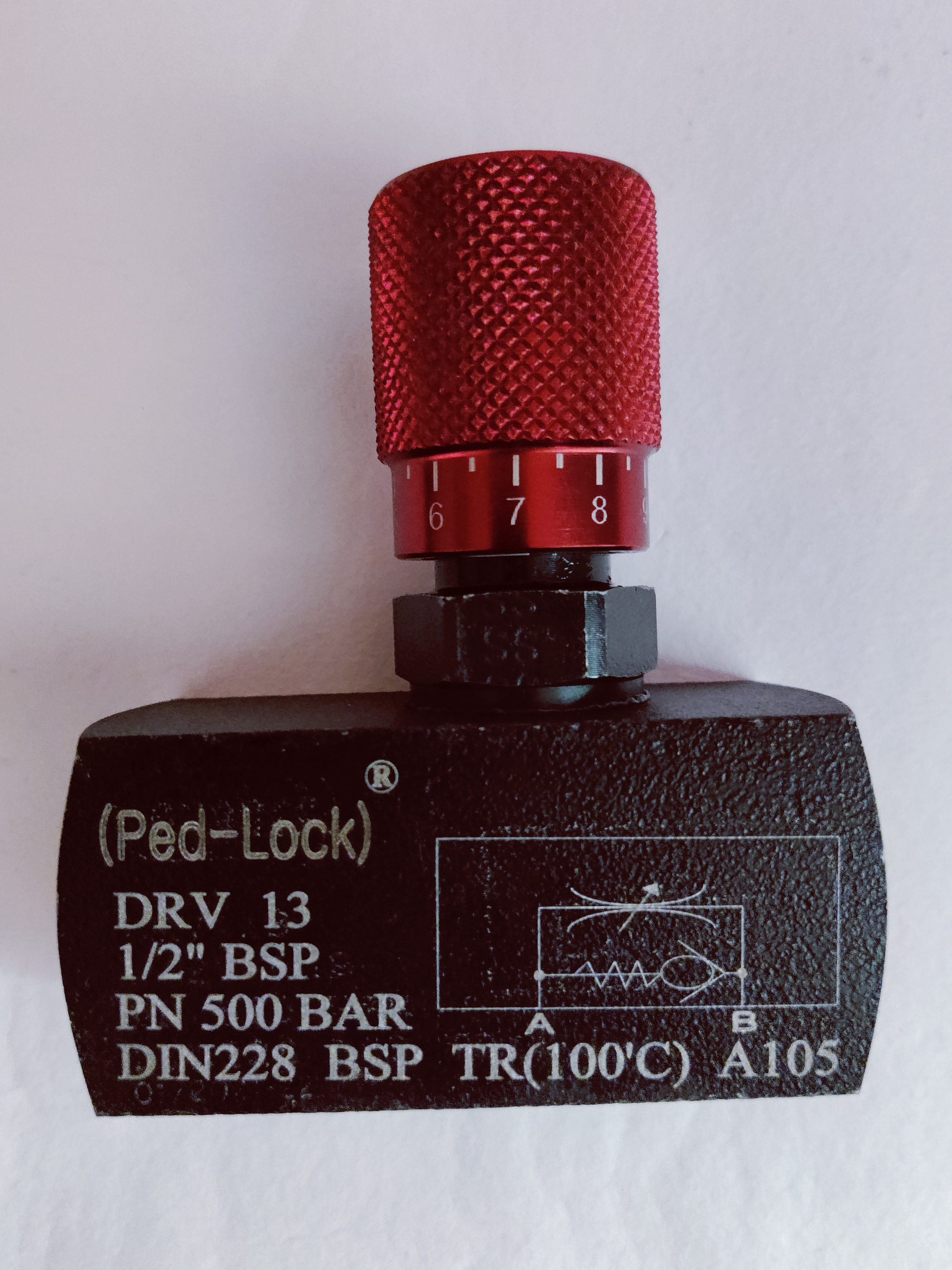

Flow Control Valve-DRV-1/2"BSP

flow control valves

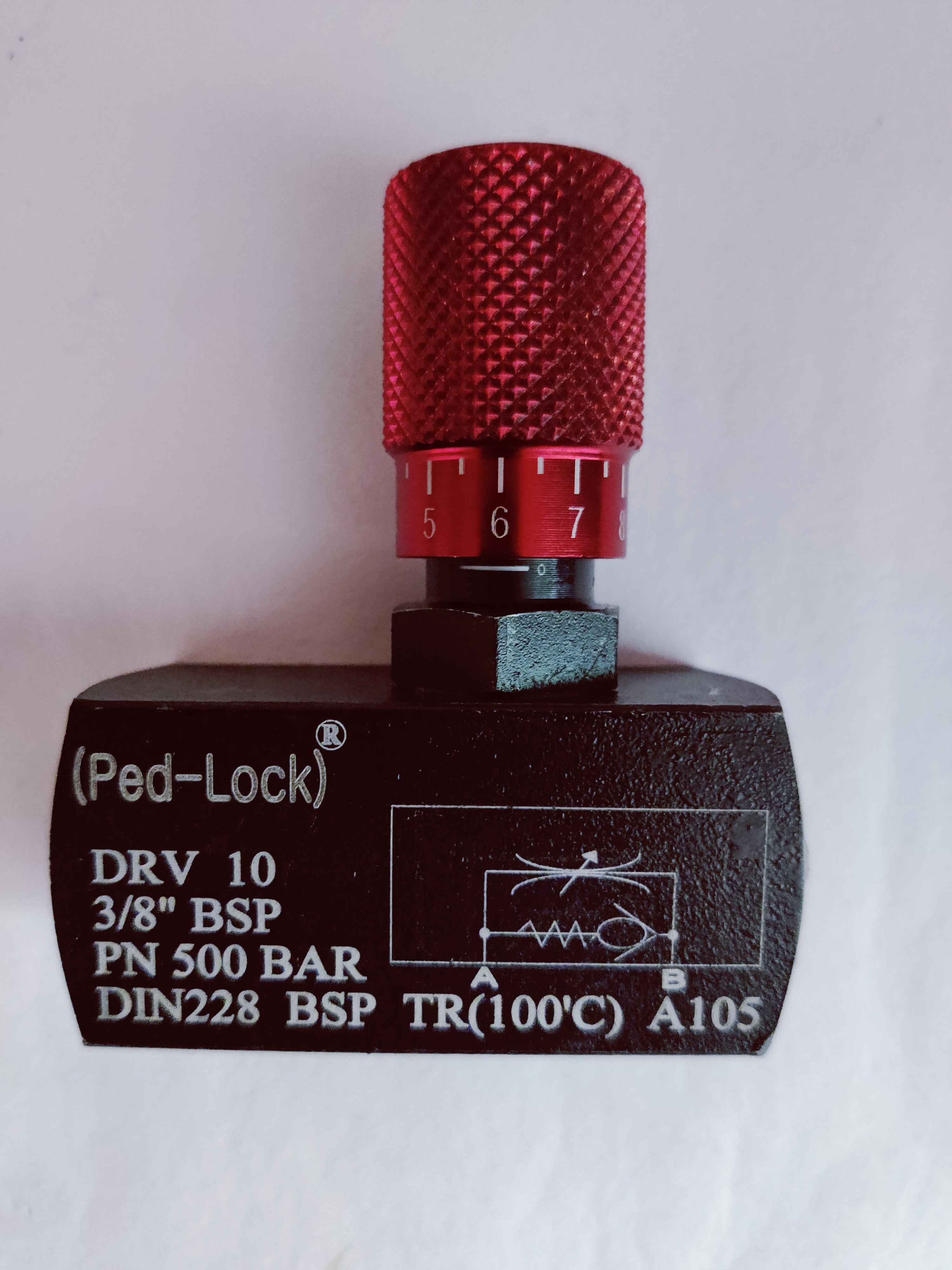

Flow Control Valve-DRV-3/8"BSP

flow control valves

Flow Control Valve-DRV-1/4"BSP


Specifications of Flow Control Valve

Atauff Hydraulic Store is one of the Flow Control Valve manufacturers, suppliers & exporters in India, spain, UK, USA, Canada, Egypt, Iran, Japan, Malaysia, Nepal, Oman.
Flow Control Valves are used to regulate the flow rate and pressure of liquids or gases through a pipeline. Flow Control Valves are essential for optimising system performance, relying on a flow passage or port with a variable flow area. This controls the from both directions.
1. Size : 1/8” to 3”
2. End Connections : NPT/BSP/SW/BW
3. Body : Square
4. Material : SS 304/ SS 316/ SS 316L/ CS /BRASS
5. Seat : PTFE
6. Working Pressure : 210 bar to 1000 bar depending on valve size and seal materials selected
7. Temperature Range : -20°C to +250°C
