CHECK VALVES | NON-RETURN VALVES

ATAUFF

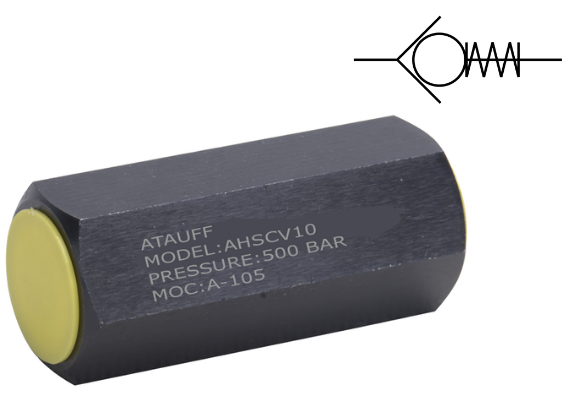

CHECK VALVE [Non Return Valve]

Atauff check valve [ACV] are seat type valves. These valves allow free flow from port “A” to port “B” & give leak proof closure in opposite direction. These valves are line mountable.

Cracking Pressure - 0, 1, 2, 3, 5, Bar.

Pressure 350 Bar


Model Code Size Flow
ACV- 06 1/4” BSP 18 LPM
ACV- 08 3/8” BSP 36 LPM
ACV- 10 1/2” BSP 60 LPM
ACV- 15 3/4” BSP 150 LPM
ACV- 20 1” BSP 250 LPM
ACV- 25 1¼” BSP 350 LPM
ACV- 30 1½” BSP 450 LPM
ACV- 40 2” BSP 600 LPM
Check Valves

Check Valve

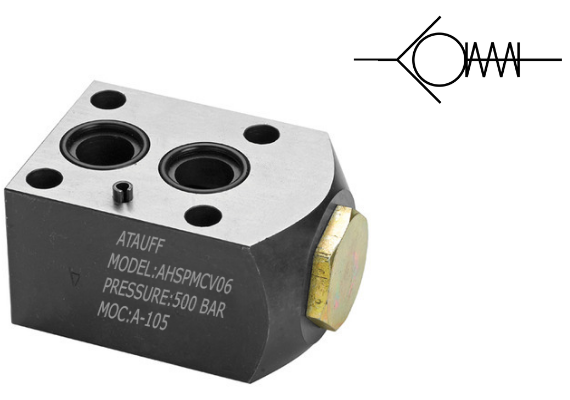

SUB - PLATE MOUNTING CHECK VALVE

Atauff sub plate mounting valve [ACVP] are seat type valves. These valves allow free flow from port “A” to port “B” & give leak proof closure in opposite direction .These valves are built compactly as base mounting valves.

Cracking Pressure - 0, 1, 2, 3, 5, Bar.

Pressure 350 Bar


Model Code Flow
ACVP- 6 18 LPM
ACVP- 10 60 LPM
ACVP- 20 250 LPM
ACVP- 30 450 LPM
Sub-Plate Mounting Check Valves

Sub-Plate Mounting Check Valve

Catalogues

Specifications Of Non-Return Valve

Atauff Hydraulic is one of the Non Return Valve manufacturers, suppliers & exporters in India. We are supplier in India, spain, UK, USA, Canada, Egypt, Iran, Japan, Malaysia, Nepal, Oman.
Check valve allows flow in one direction and automatically prevents back flow when fluid in line reverses direction. They are one of the flow self-automated valves that do not require assistance to open and close.
1. Size : 1/4" to 2”
2. End Connections : NPT/ BSP/ BSPT
3. Material : SS 304 / SS 316 / SS 316L / Brass / CS
4. Body : Hexagon
5. Pressure Rating : Up to 1000 bar
6. Temperature Rating : +20°C to +250°C depending on seal material selected.
